SB-3262SG Lightweight Brushless
Introducing the SB-3262SG — a lightweight servo with a next-gen brushless motor that delivers more torque with less weight. Ideal for weight-conscious racers who need fast response and high output.
Specs:
Line: MONSTER LINE
Application: CAR / BOAT / AIRPLANE
Servo Size: Low Profile
Operating Voltage: 6.0V-8.4V
Speed @6.0V: 0.1s/60°
Torque @6.0V: 22kg/cm
Speed @7.4V: 0.08s/60°
Torque @7.4V: 28kg/cm
Speed @8.4V: 0.065s/60°
Torque @8.4V: 35kg/cm
Amplifier Type: Digital Controller
Motor Type: Patented Lightweight Brushless
Case Type: Aluminium
Protection: Water Resistant

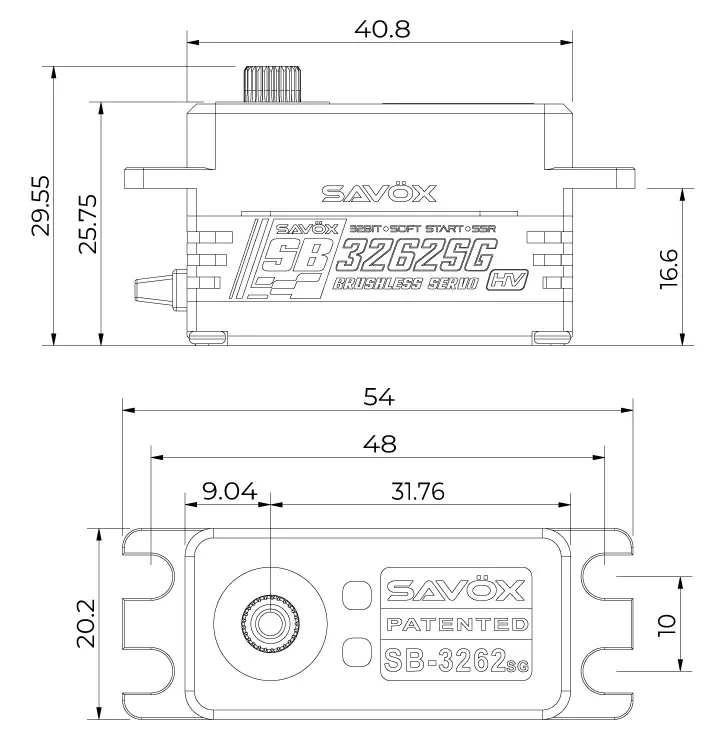

Dimensions: L40.8xW20.2xH25.4mm
Weight: 53g

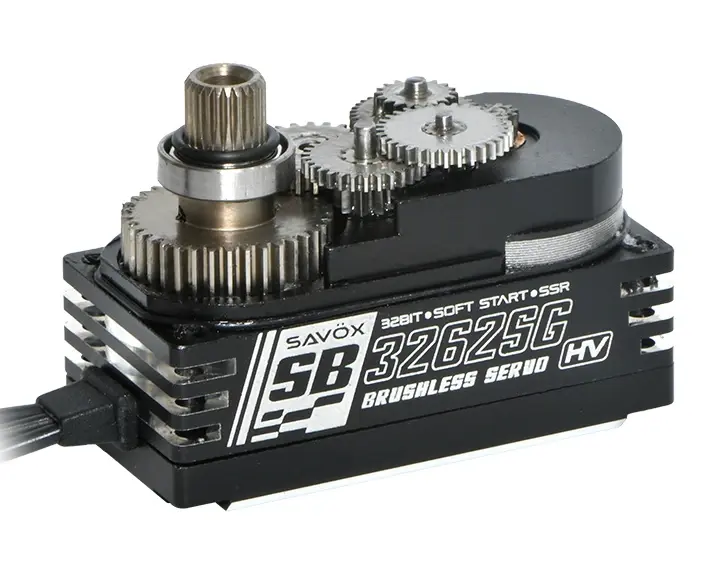

Gear Type: Specialized Steel
Compatibility: Sanwa SUR & SSR, Futaba UR & SR
PCB Board: 32-bit
Horn Gear Spline: 25T (Φ6)
Rotating Direction: Clockwise (when 1000→2000μsec)
Max Travel: ~130° (when 900→2100μsec)
Operating Travel: 90° (when 1000→2000μsec)
Neutral Position: 1500μsec
Bearing: 2x Ball Bearings
Potentiometer: VR
Cable Diameter: 22AWG
Cable Length: 300±5mm
Connector: JR
Stall Current @6.0V: 4500mA
Operating Current @6.0V: 200mA
Stall Current @7.4V: 5600mA
Operating Current @7.4V: 220mA
Stall Current @8.4V: 6300mA
Operating Current @8.4V: 250mA
Idle Current: 5mA
Dead Band Width: 3-5μsec
Frequency Range: 50-360Hz
Control System: Pulse Width Modification
Operating Temperature: -10°C to 50°C
