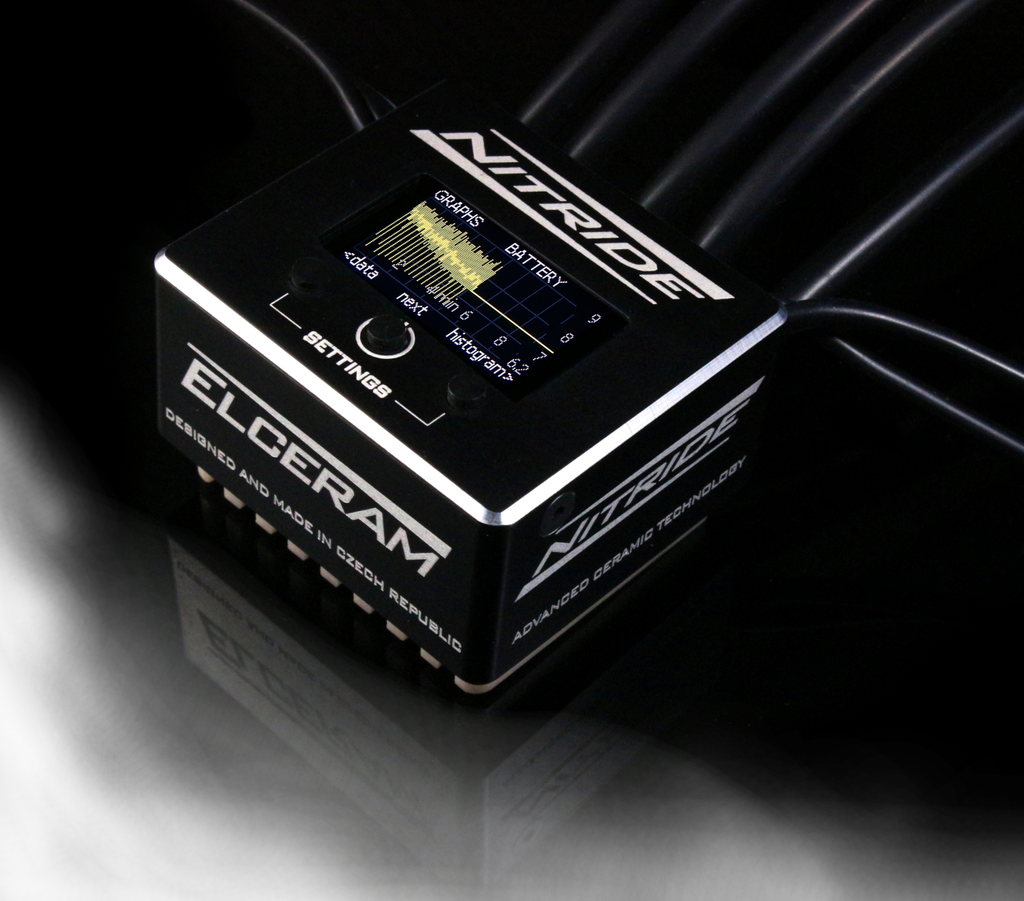

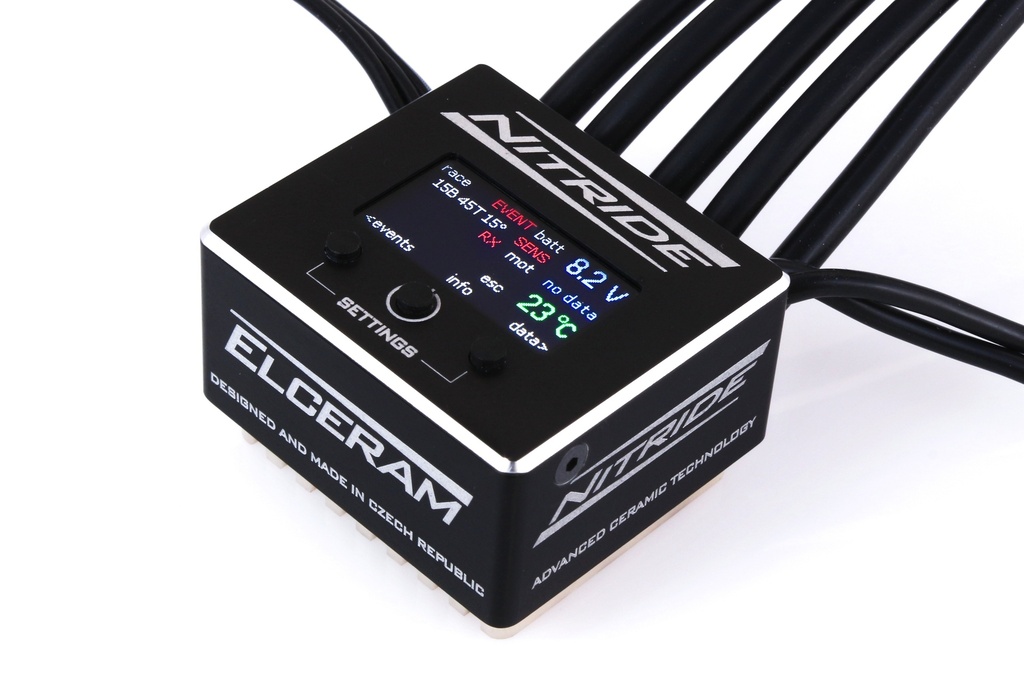

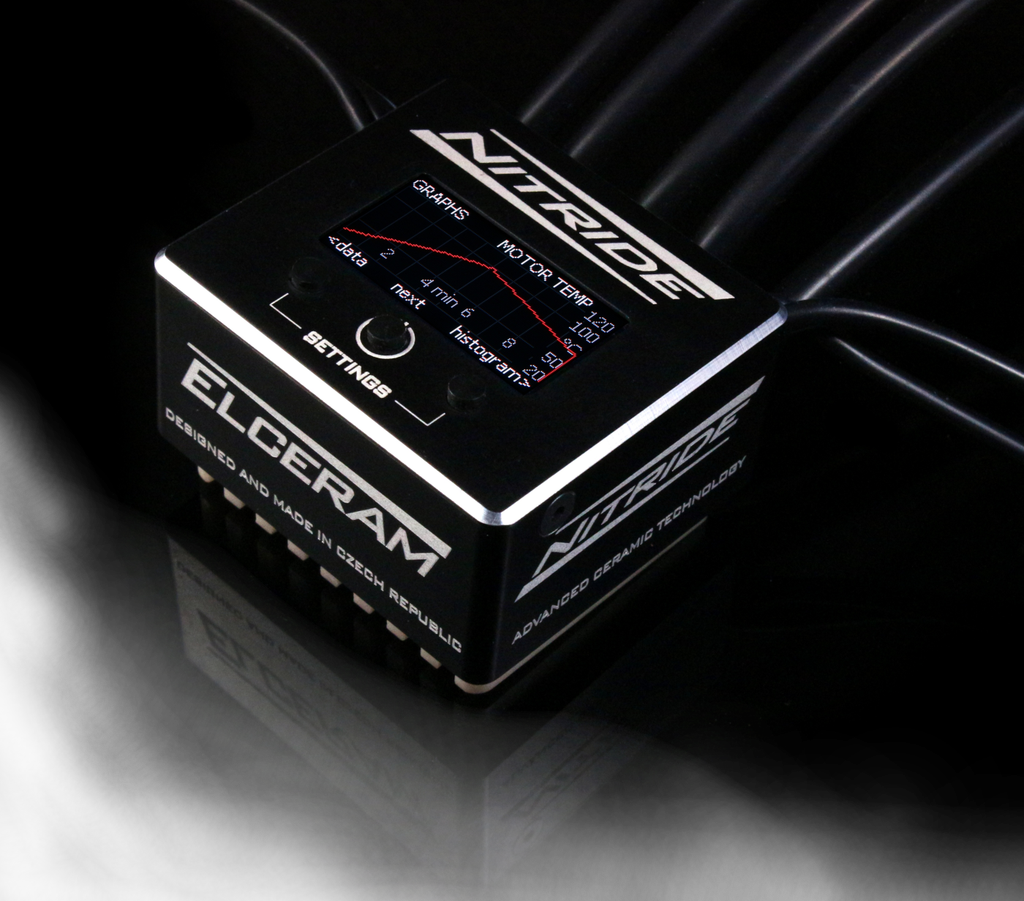

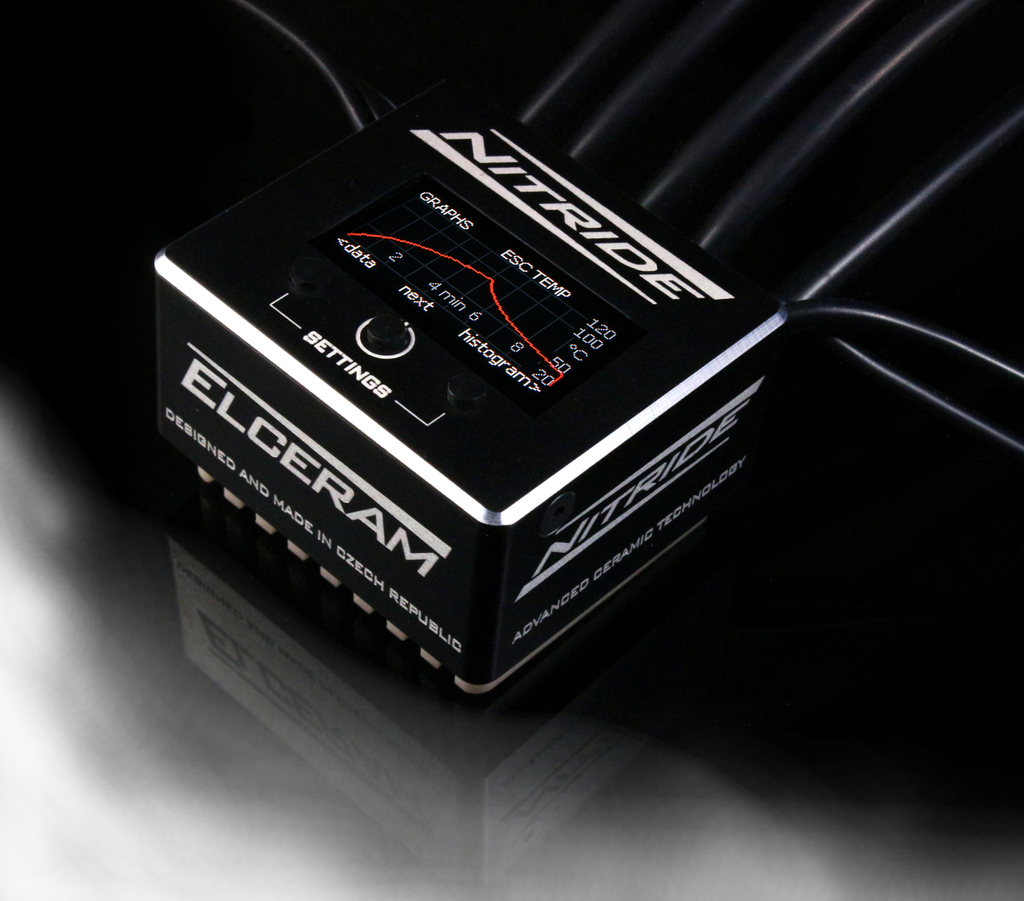

    Electronic speed controller for BLDC motors designed especially for 1/10 RC cars.

    NITRIDE is the first ESC with TFT LCD color display ever. This advantage enables easy setting and programming of all parameters directly at ESC, using just display and 3 buttons, without need of any other interface. All you need is inside of your ESC.

    Thanks to Advanced Cooling Technology based on Aluminium Nitride Ceramic, NITRIDE is characterized by excellent thermal conductivity.

    These properties provide NITRIDE revolutionary features:

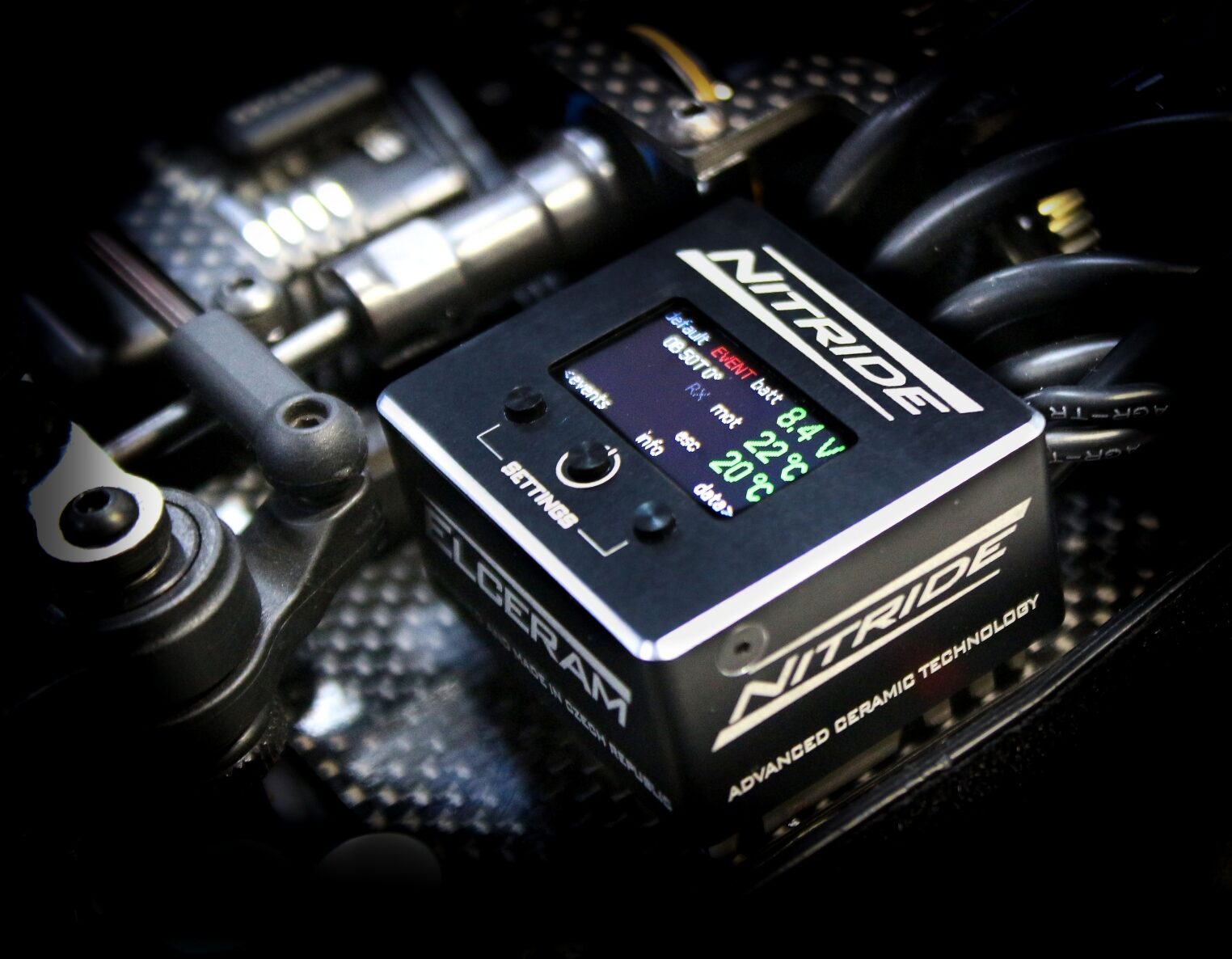

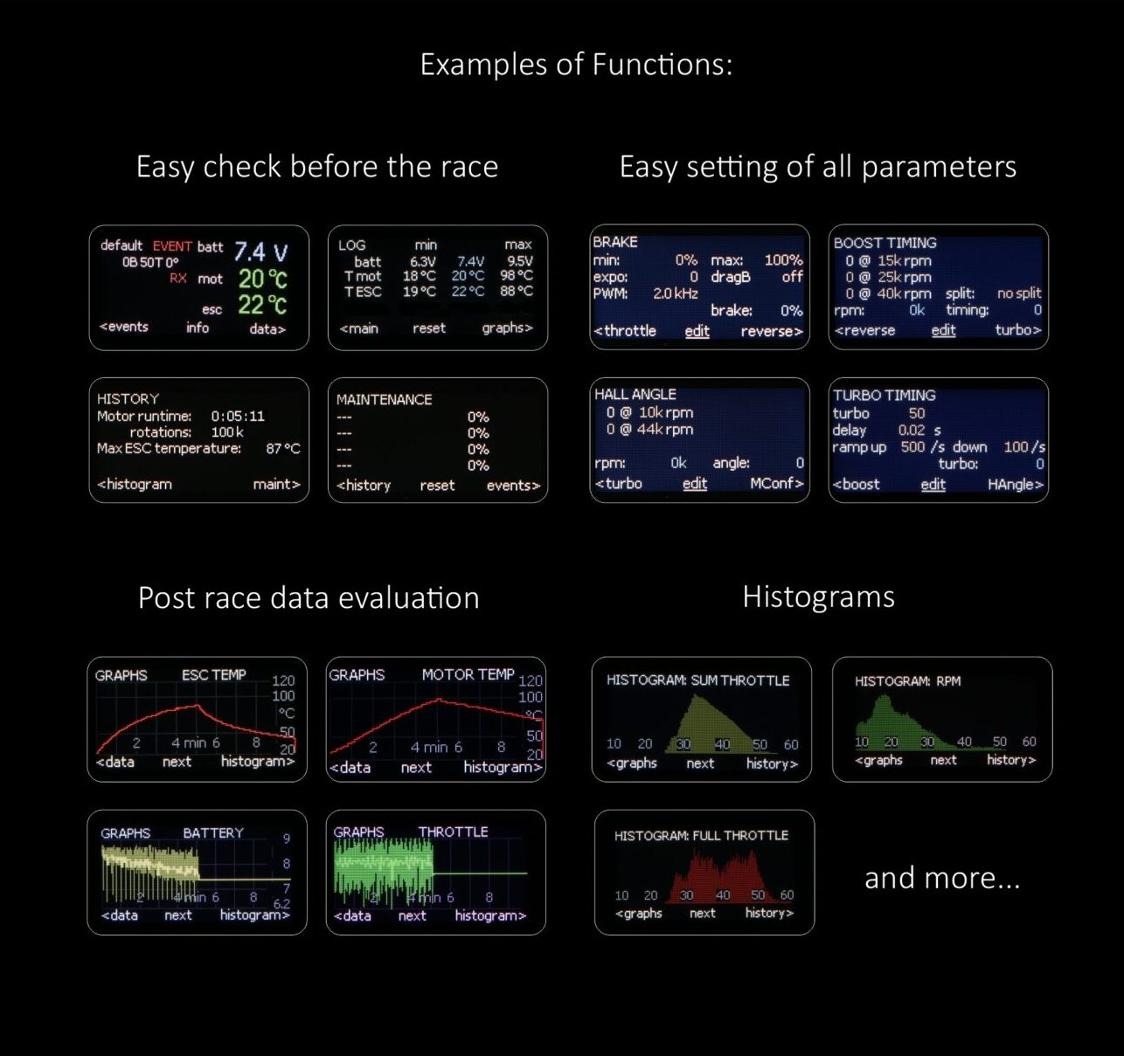

    • Real-time monitoring such as battery voltage or ESC and Motor temperatures directly at the display of ESC.

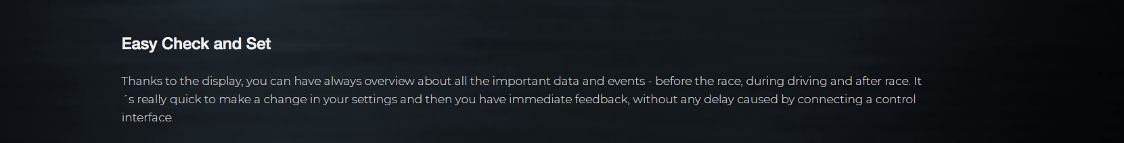

    • Easy check before the race: motor temperature, sensor cable or battery voltage can be quickly checked by one look at the display of ESC.

    • Post-race data evaluation, no other interface needed.

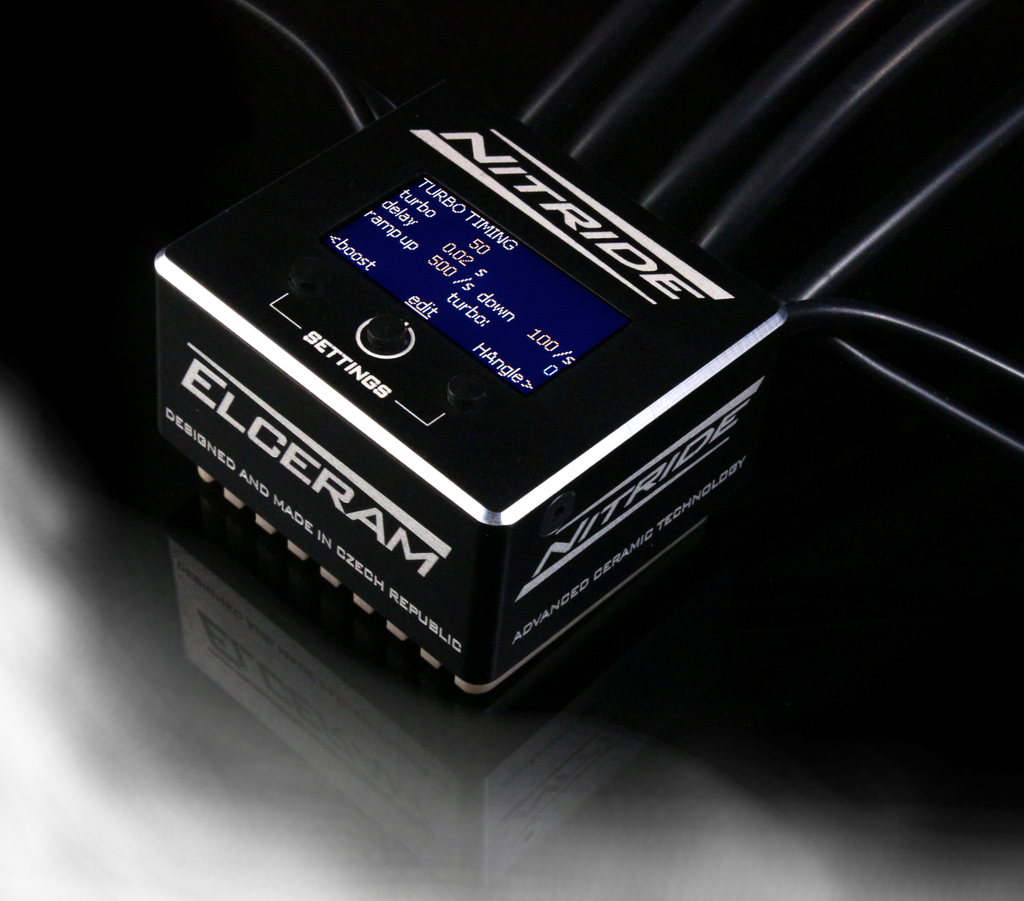

    • Easy programming: throttle, brake, timing, hall angle, top speed and many other functions.

    • Race data logging, temperature and other curves, histograms and more.

    Key Characteristics:

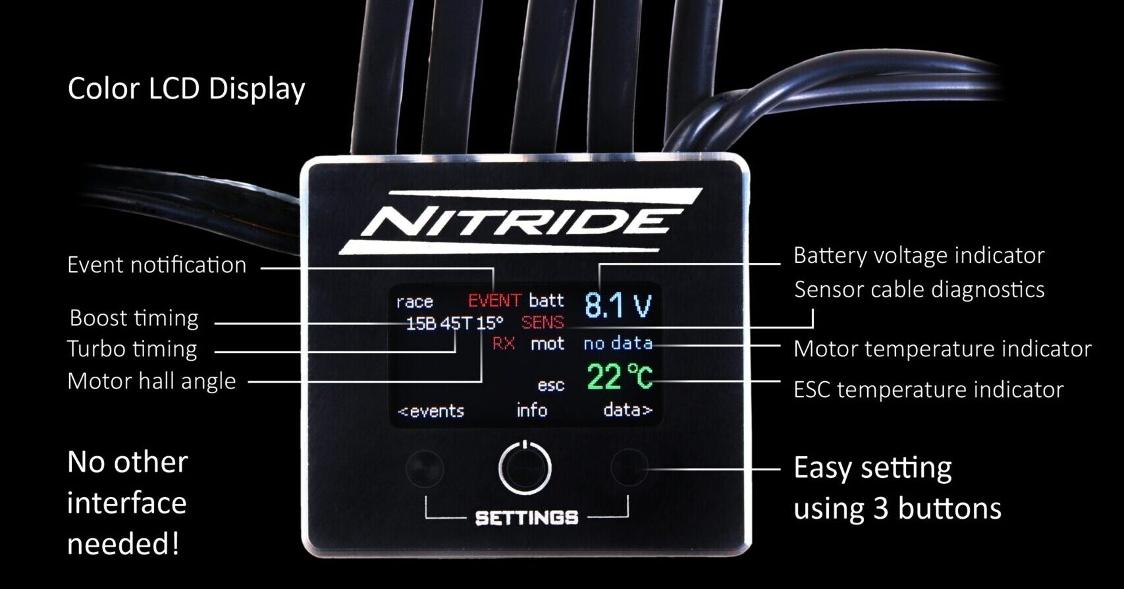

    • TFT LCD color display with resolution 160 x 80 pixels.

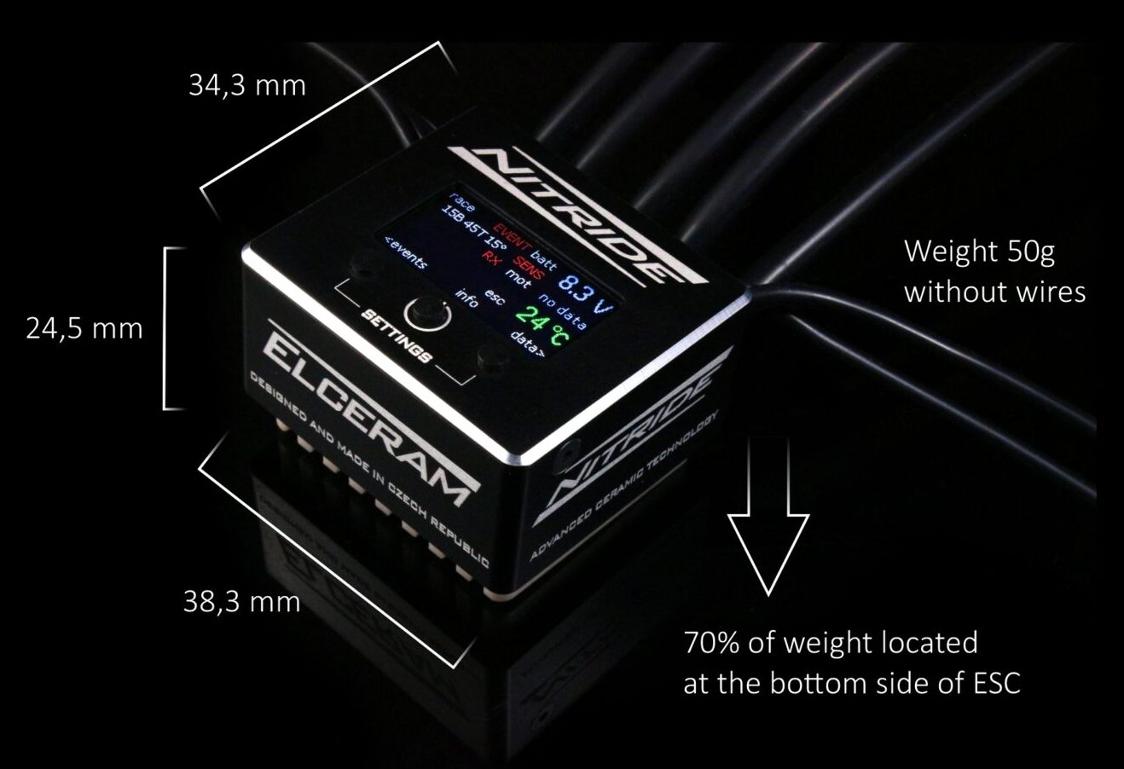

    • Size: 38,3 (L) x 34,3 (W) x 24,5 (H) mm.

    • Weight: 50 g without wires / 90 g with wires AWG13 - 180 mm.

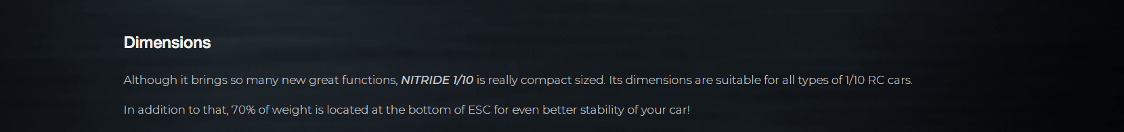

    • 70 % of weight located in bottom side of ESC

    • Power supply: 2S LiPo.

    • Current cont. / pulsed: 180 A / 1500 A.

    • BEC: 7,4 V fixed, 4 A cont. / 10 A peak at 125 °C.

    • Extreme low internal resistance based on silver conductive layer.

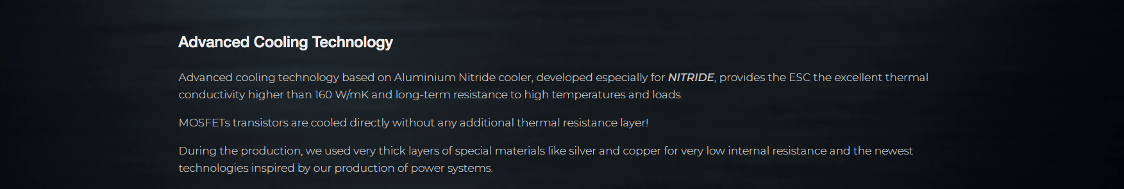

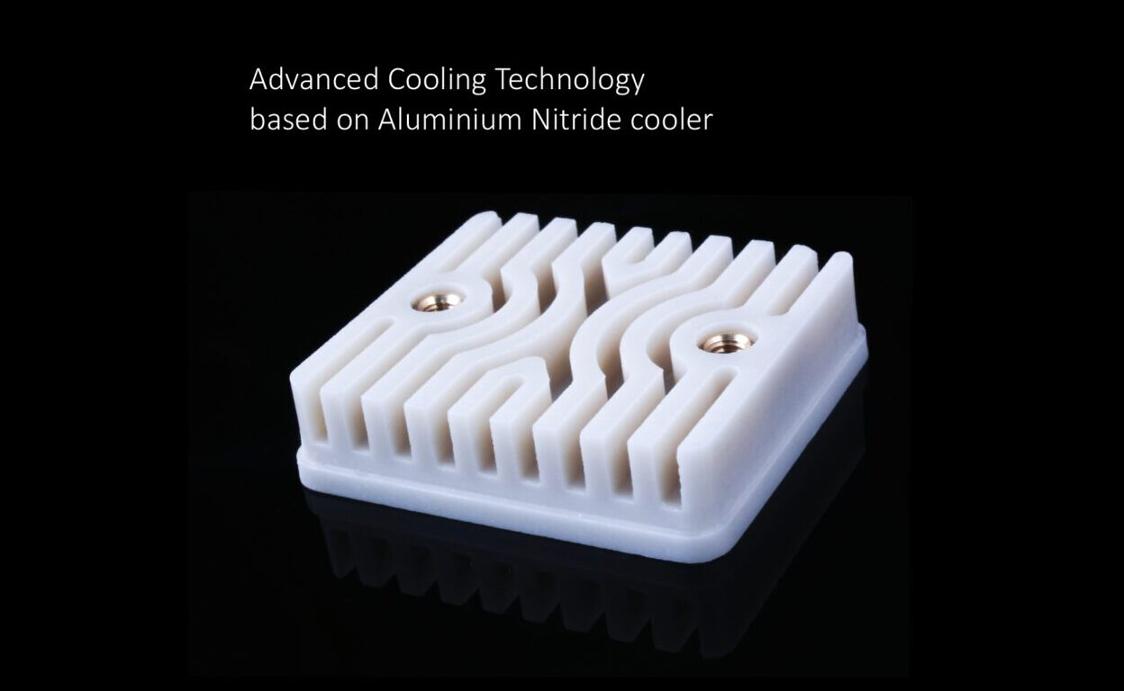

    • Advanced Cooling Technology based on Aluminium Nitride Ceramic Cooler.

    • Designed for high level RC racing.

    • Zero Timing (Blinky Mode) supported.

    • For sensored BLDC motors from 4.5T up.

    • Designed and produced in Czech Republic
