NITRIDE 1/8 Onroad & Offroad
Key Features and Specifications

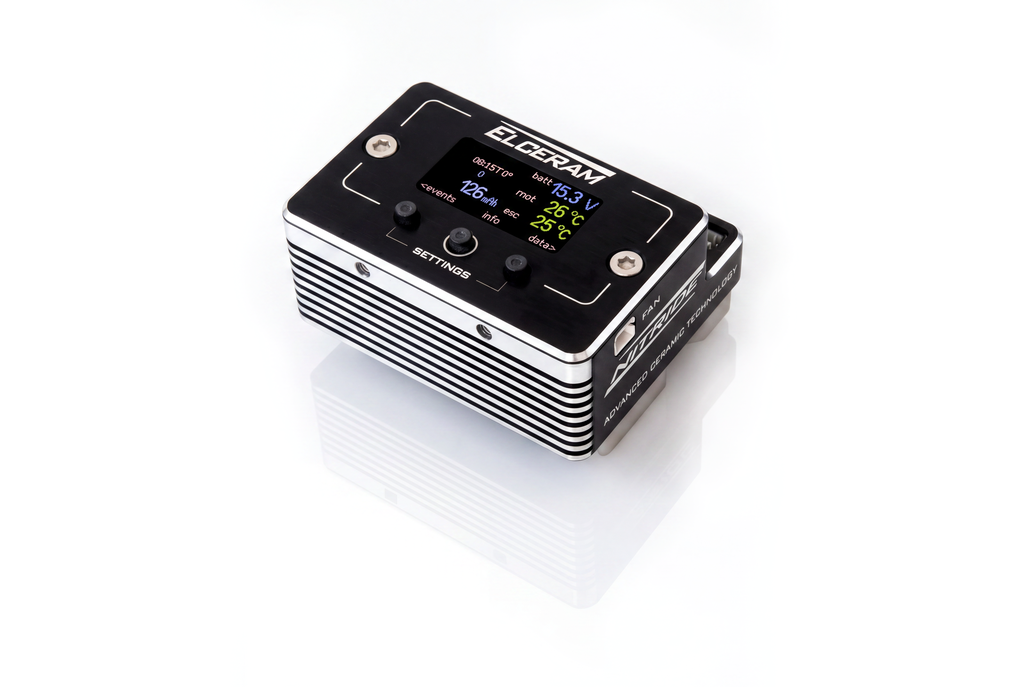

NITRIDE 1/8 is a new generation electronic speed controller for sensored Brushless DC motors. Using Advanced Cooling Technology based on Aluminium NITRIDE Ceramic cooler, NITRIDE 1/8 has excellent thermal conductivity and can be used with powerful motors up to 2800 kV.
NITRIDE 1/8 brings revolutionary battery current and discharge real-time monitoring and Innovative Intelligent Algorithms to protect ESC in case of motor failure or mechanical issue.
NITRIDE 1/8 is featured with reverse polarity protection.
NITRIDE 1/8 has TFT matt surface LCD colour display and no other interface is needed. Simple settings adjustment with 3 buttons on display.
Programmable parameters and functions:
• Revolutionary simple Rx calibration.
• Real time monitoring: battery voltage, ESC and motor temperatures, motor diagnostics and
more.
• Revolutionary battery current and discharge monitoring.
• Pre-race diagnostics: motor temperature, sensor cable, bad motor, battery, BEC voltage and
more.
• Easy programming: throttle, brake, boost and turbo timing, Hall angle and many other
functions.
• Race data logging, temperature and other curves, histograms and more. Data will be saved
after turn off the ESC.
• Adjustable maintenance reminder for easy checking.
• No programming interface required.
• Firmware update function.
Key Features:
• TFT LCD colour display, matte finish - LCD colour display with a resolution of 160 x 80 pixels
allows you to set all the parameters and check all the data directly on your ESC, without the
need for a programming card or a mobile application. Everything you need is inside your ESC.
It is really easy to use - 3 buttons allow you to quickly set everything you need and a single
view is enough to check all the parameters necessary for the race. Simple. Fast. Accurate.
• Easy Check and Set - The display gives you an overview of all the important data and events -
before the race, during the race and after the race. You can change your settings quickly and
get instant feedback, without the delay of connecting an external control interface.
• Advanced Cooling Technology - NITRIDE Featured Advanced cooling technology based on
Aluminium NITRIDE heatsink, specially developed for NITRIDE, gives the ESC excellent
thermal
conductivity and long-term resistance to high temperatures and loads.
MOSFETs transistors are cooled directly without any additional thermal resistance layer!
During production, ELCERAM used very thick layers of special materials such as silver and
copper for very low internal resistance and the latest technologies inspired by advanced
power systems designed and manufactured by ELCERAM.
• For even better cooling, NITRIDE 1/8 features additional aluminium cooling fins. If it is needed
in special conditions, NITRIDE 1/8 is equipped with pre-drilled mounting holes for fan
installation and a connector for Intelligent fan 25 mm.
• Reverse polarity protection.
• Intelligent algorithms for ESC protection.
• Easy installation - installation of NITRIDE 1/8 is quick and easy – it can be sticked to the
chassis using double-sided tape (included in the package) or screwed directly onto a suitable
place, ideally with good thermal conductivity.
• In addition, the cover of ESC with display and buttons is able to be changed simply in case of
any accident.
Specifications:
• Type:
Scale: 1/8th Onroad and Offroad
Brushless
Sensored
• Waterproof: No
• Polarity protection: Yes
• Relevant parameters:
Cont./Peak Current: 220A / 1500 A
Input Voltage: 2S – 4S LiPo
BEC Output adjustable voltage: 6.0 - 8.4 V
BEC current Cont. / Peak: 6 A/15 A
Fan output adjustable voltage: 6.0 – 8.4 V
Fan output current Cont.: 3 A
• Size and weight:
Width: 43 mm
Length: 50 mm
Height: 28 mm
Weight: 112 g without wires
BEC cable length: 300 mm, grey stripe is minus pole
• Applications:
Applications: Sensored Brushless DC Motors max. 2800 kV
Vehicles: 1/8 Offroad, 1/8 Onroad
• Zero Timing (Blinky Mode) supported.
• External capacitors necessary (included in package)
Package Contents:
• NITRIDE 1/8 ESC
• Wires AWG10
• External capacitors 2x
• ELCERAM fan 25mm
• Double-sided tapes
• ELCERAM stickers
